Mini Bullet Camera 5MP POE Cameras Outdoor Black-light-level Starlight Security Surveillance P2P Full HD Video Recorder Onvif IP
Price range: $51.46 through $55.55
Mini Bullet camera Starlight-level, blacklight-level, industrial-grade 5MP high-definition IP camera supports up to 512G memory card and 1TB computing power HI3516C
this Camera adopts highly integrated Hisilicon 3516CV610, Support 5MP 25 fps realtime code;extremely low power consumption and strong stability; supports H.265 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard Support Hik vision protocol, and compatible with iVMS-4200, support RTSP, ON VIF and other protocols, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;
Mini Bullet camera Starlight-level, blacklight-level, industrial-grade 5MP high-definition IP camera supports up to 512G memory card and 1TB computing power HI3516C
1,Supporting languages: Chinese, English, Russian, Spanish, Portuguese, Turkish, Ukrainian, Vietnamese, Arabic, French, Korean, Polish, Indonesian, Italian, Japanese, Persian etc
2,Support Full-color night vision. The camera is not equipped with an infrared lamp, so only some natural light is needed at night
3,The highest pixel is up to 5MP, and the highest resolution is up to 25fps.
4,H.265 compression algorithm, effectively reducing network bandwidth, supporting dual stream, supporting mobile phone monitoring
5,Support humanoid recognition to trigger SD card recording, SD card capture, voice alarm, message push, email alarm and other functions.
6,support fog function,WDR
7,Support strong light suppression function.
8,Support humanoid recognition and humanoid alarm
9,Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP,etc.
10,Support ONVI F protocol,Hi-kvision protocol
11,Support for manufacturer dynamic domain name and third-party dynamic domain name resolution
12,Support alarm picture sending E-Mail
13,Support alarm picture upload FTP server
14,Support alarm sound outputs
15,Support timing capture pictures to FTP server
16,Support static IP, also support dynamic IP (DHCP)
17,Support P2P plug and play
18,Built in web 2.0 pages, supporting non IE core browsers such as Edge, Chrome, Safari, Firefox, etc
19,Supports up to 6 users to browse at the same time (3 users per stream)
20,Provide motion detection (area, sensitivity can be set) alarm function
21,Built in humanoid and vehicle shape detection functions; Expand the application scenarios of electronic fences, cross-border detection, departure detection, and passenger flow statistics
22,Supports 1-100000 electronic shutter adjustment.
23,Supports up to 4 privacy masking area settings
24,Support UPNP automatic port mapping
25,Support Micro SD card function, support up to 512GB Micro SD card
26,Support PC client to download SD card video
27,,Support mobile phone download and playback SD card recording
The lower right corner of the photo shows the number of people entering and leaving the statistics. The green triangles in the picture are the set areas, and you can freely set the areas in the Settings
24 people came in，27 left (the statistics of the number of people are shown in the lower right corner of the photo)
Supports human shape detection and vehicle detection
Support off-duty (employee position detection) detection. When no one is detected in the area, an alarm will be triggered
Supports boundary crossing detection. When a person or vehicle is detected to have crossed the warning line, an alarm will be triggered
The self-held electronic fence detection system will trigger an alarm when it detects someone or a vehicle entering or leaving the alert area
The shell is waterproof and can withstand rain, but it does not support long-term immersion in water
Shell size information
TF card installation diagram
A: Rotate the back cover forcefully with the help of the bracket
B: Slowly pull out the camera module
C: Loosen the screws that fix the camera module
D: Install the TF card
E: Install the screws that fix the module and unscrew the glass cover
F: Install the back cover with the help of the bracket.
G: Please tighten the back cover and check the sealing ring
H: Screw on the glass cover and check the sealing ring
|
Basic parameters |
|
|
Day and night mode |
Black light full color (Requires a black light lens), intelligent dual light, infrared mode (Optional), intelligent light face but exposure |
|
Image adjustment |
Support automatic white balance, support digital width dynamic, support backlight compensation, brightness contrast color and other parameters adjustable; |
|
Privacy block |
The private occlusion area is supported |
|
acoustic image |
Support mirror image |
|
OSD |
Support OSD settings and support OSD drag |
|

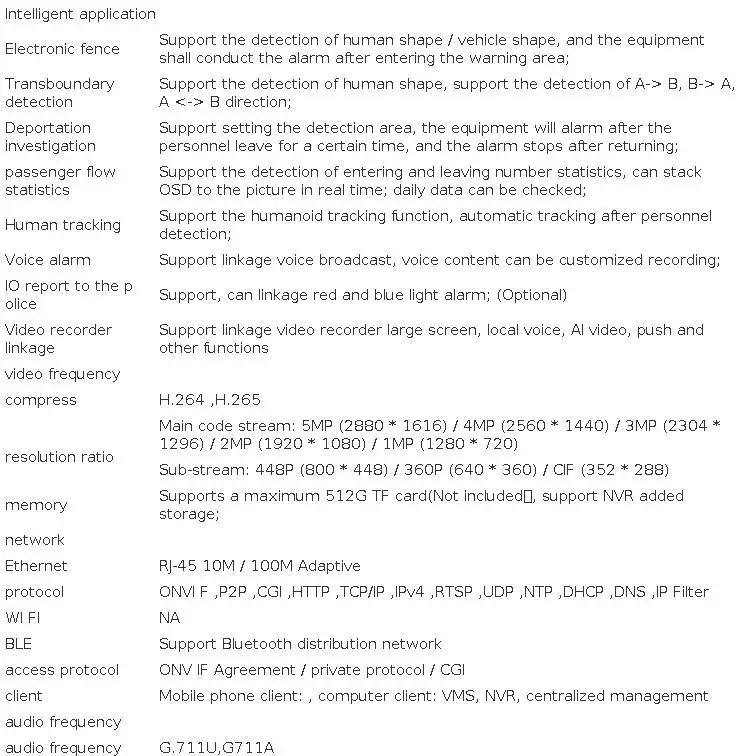

Intelligent application |
|
|
Electronic fence |
Support the detection of human shape / vehicle shape, and the equipment shall conduct the alarm after entering the warning area; |
|
Transboundary detection |
Support the detection of human shape, support the detection of A-> B, B-> A, A <-> B direction; |
|
Deportation investigation |
Support setting the detection area, the equipment will alarm after the personnel leave for a certain time, and the alarm stops after returning; |
|
passenger flow statistics |
Support the detection of entering and leaving number statistics, can stack OSD to the picture in real time; daily data can be checked; |
|
Human tracking |
Support the humanoid tracking function, automatic tracking after personnel detection; |
|
Voice alarm |
Support linkage voice broadcast, voice content can be customized recording; |
|
IO report to the p olice |
Support, can linkage red and blue light alarm; (Optional) |
|
Video recorder linkage |
Support linkage video recorder large screen, local voice, AI video, push and other functions |
|
video frequency |
|
|
compress |
H.264 ,H.265 |
|
resolution ratio |
Main code stream: 5MP (2880 * 1616) / 4MP (2560 * 1440) / 3MP (2304 * 1296) / 2MP (1920 * 1080) / 1MP (1280 * 720) |
|
Sub-stream: 448P (800 * 448) / 360P (640 * 360) / CIF (352 * 288) |
|
|
memory |
Supports a maximum 512G TF card(Not included）, support NVR added storage; |
|
network |
|
|
Ethernet |
RJ-45 10M / 100M Adaptive |
|
protocol |
ONVI F ,P2P ,CGI ,HTTP ,TCP/IP ,IPv4 ,RTSP ,UDP ,NTP ,DHCP ,DNS ,IP Filter |
|
WI FI |
NA |
|
BLE |
Support Bluetooth distribution network |
|
access protocol |
ONV IF Agreement / private protocol / CGI |
|
client |
Mobile phone client: , computer client: VMS, NVR, centralized management |
|
audio frequency |
|
|
audio frequency |
G.711U,G711A |
|
Audio input |
Support (Recommended-36DB MIC) |
|
Audio output |
|
|
General specification |
|
|
size |
30*96mm |
|
work environment |
-30℃ ~ +60℃ |
|
source |
DC 12V(Optional POE） |
Main stream : rtsp://192.168.0.11/live/0/MAIN
Substream : rtsp://192.168.0.11/live/0/SUB
Description of the POE version wire interface
Description of the 12V version wire interface
If there is a layer of fog in the camera image, please refer to the picture below. It might be that the temperature inside the casing is inconsistent with that outside, causing the gas inside the casing to evaporate and water to adhere to the glass or the lens.
Solution 1: Open the casing to let the fog disperse. After 10 seconds, reinstall the casing
Solution 2: Keep the camera running continuously without any processing. The fog will automatically evaporate after 2 to 3 hours
Xiaomi mobile phone shooting effect picture
Shooting time: 12 p.m
Camera footage (the camera is not equipped with an infrared lamp) :
Shooting time: 12 p.m
Some uses of the product
| Weight | 0.269 lbs |
|---|---|
| Dimensions | 14 × 11 × 8 in |
| Brand Name |
HQCAM |
| Zoom type |
Digital zoom |
| Megapixels |
5 MP |
| Zoom |
5x |
| Origin |
Mainland China |
| High Definition |
5.0 Megapixels |
| High-concerned chemical |
None |
| Lens Quantity |
Single Lens |
| Supported Operating Systems |
Windows XP, macOS, Windows 8, Windows 10 |
| Lens (mm) |
3.6mm |
| Power Supply |
With Poe |
| Style |
Mini Camera |
| Connectivity |
Closed System/CCTV Wired |
| Installation |
Pendant Mount |
| Minimum Illumination(Lux) |
0.001 |
| Scene |
Indoor and outdoor |
| Color Night Vision |
Yes |
| Special Features |
Waterproof / Weatherproof |
| Internal Storage |
64G |
| Video Compression Format |
H.264, H.265 |
| IR Distance(m) |
NA |
| Alarm Type |
FTP Photo, Email Photo |
| Dimensions (L x W x D)(mm) |
30x96mm |
| Shell Material |
Metal |
| Color |
black |
| Power Mode |
Mains Electricity |
| is_customized |
Yes |
| Model Number |
HQ-X06 |
| Supported Mobile Systems |
Android, iOS |
| Optical Zoom |
None |
| AI Functions |
Vehicle Detection |
| IP Rating |
IP67 |
| App name |
Other |
| TF Card |
64G TF Card |
| Power Supply(V) |
12V |
| Sensor |
CMOS |
| Sensor Brand |
Omnivision |
| Operating Temperature |
-10°-60° |
| Viewing Angle |
90° |
| Power Source |
With Poe |
| Whether or Not 50Vac or 75Vdc or Higher Power Supply |
No |
| Choice |
yes |
