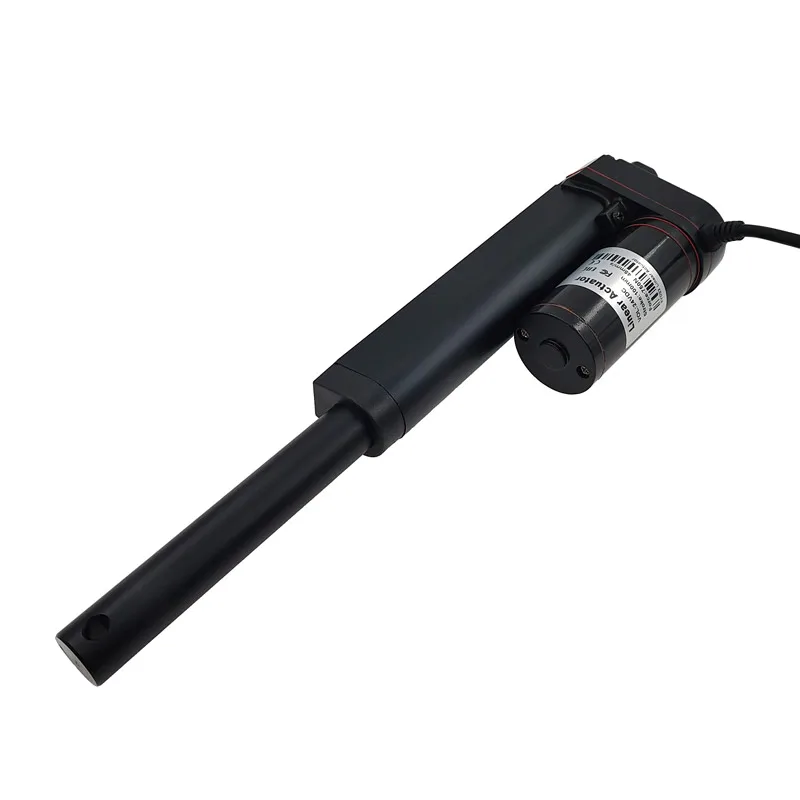

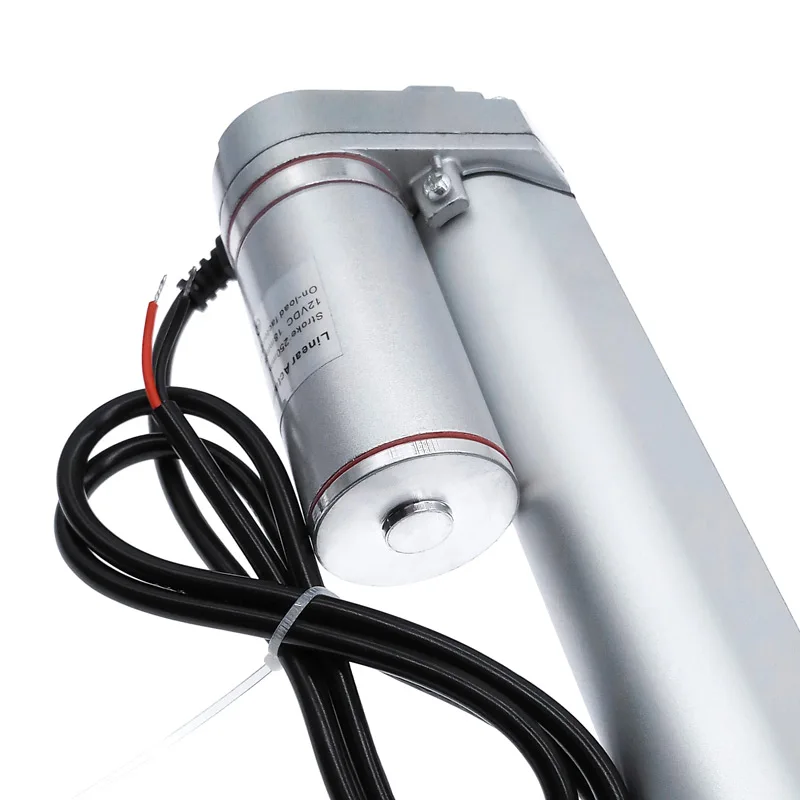

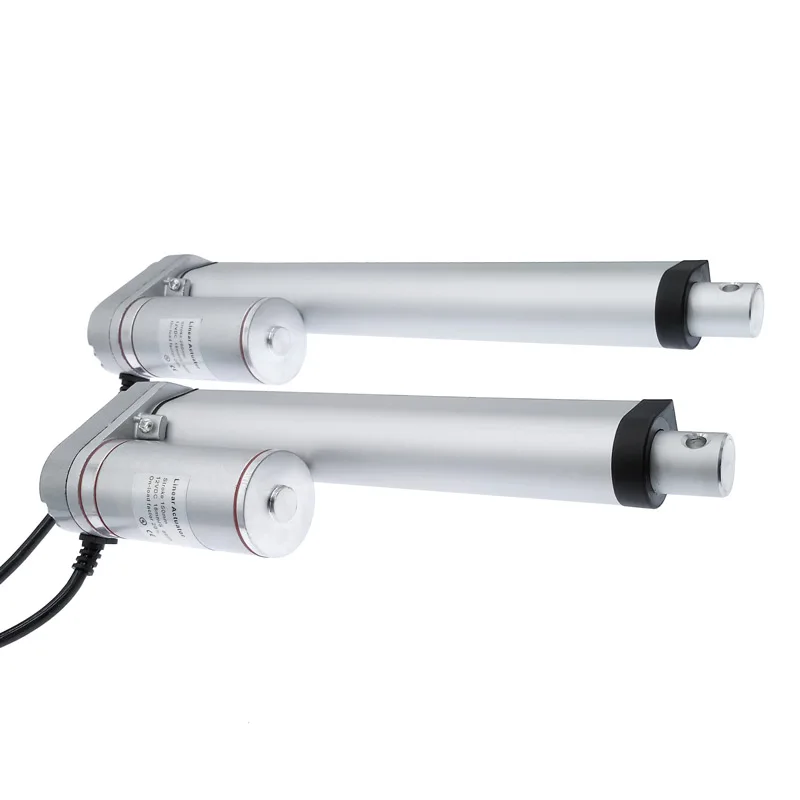

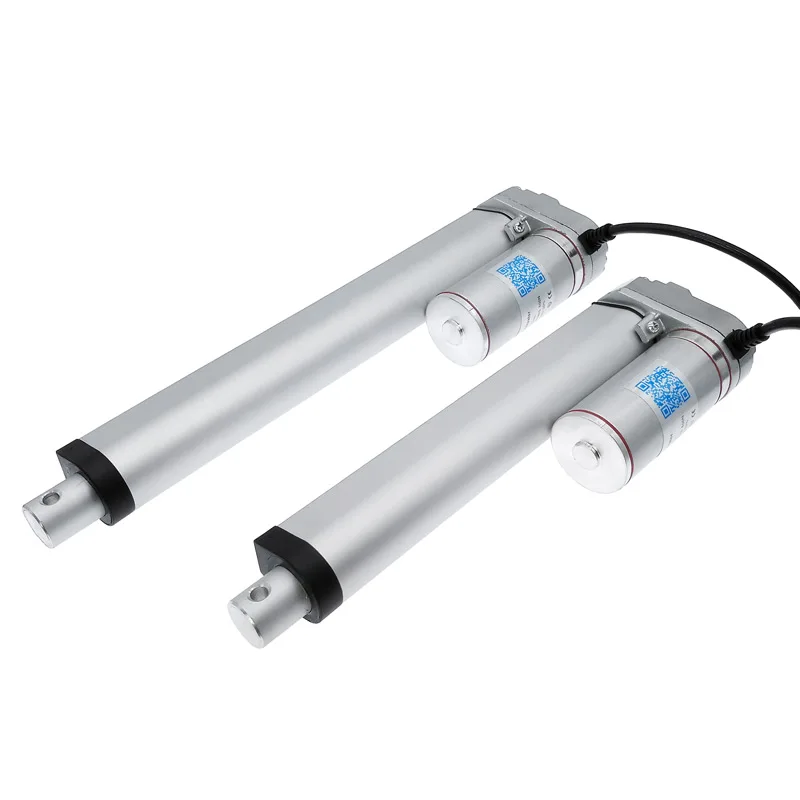

Linear actuator 500mm Stroke 12V 24V Linear Actuator Motor 100/300/500/700/1000/1200/1500N Silvery

£28.07

SKU: XY4R20Z4W6JH Category:
Description

Technical Parameters:

Rated power: 20W Maximum 30W

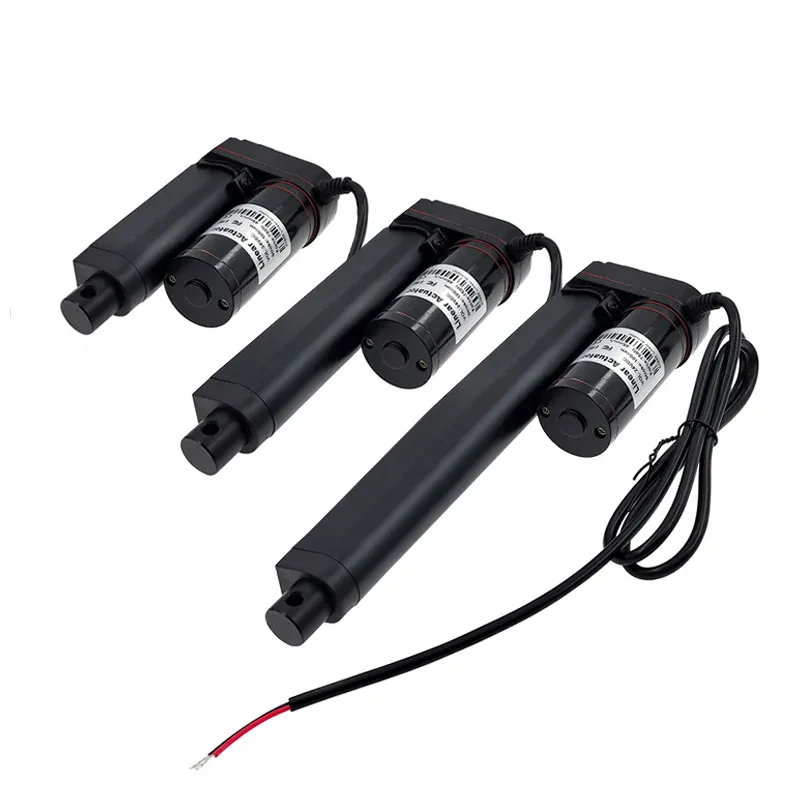

Stroke: 50mm/100mm/150mm/200mm/250mm/300mm/350mm/400mm/450mm/500mm

Permanent magnet DC motor drive;

Voltage: 12V,24V

Standard protection grade: IP54

Material: aluminum alloy

Ambient temperature -20°C to +75°C.

Low noise design, noise level less than 42dB.

Application: Television console.couch for massage.Electric bed.Medical chair.Electric equipment ….

The self-locking force of the linear actuator is about 80%

Size:

L= Minimum installation distance

S= Effective stroke

Size introduction:

Stroke Length: means the movement length of linear actuator.

Retracted Length: means the length when linear actuator 100% fully closed.

Extended Length: means the length when linear actuator 100% fully open.

Stroke length introduction:

50mm Stroke, Retracted Length=155mm, Extended Length=205mm

100mm Stroke, Retracted Length=205mm, Extended Length=305mm

150mm Stroke, Retracted Length=255mm, Extended Length=405mm

200mm Stroke, Retracted Length=305mm, Extended Length=505mm

250mm Stroke, Retracted Length=355mm, Extended Length=605mm

300mm Stroke, Retracted Length=405mm, Extended Length=705mm

… …

Additional information
Weight 2.010 lbs
Dimensions 61 × 10 × 12 in
Brand Name

CNMAWAY

High-concerned chemical

None

Output Power

<18.65

Certification

ce

Origin

Mainland China

Continuous Current(A)

1~2A

Commutation

Brush

Type

Gear Motor

Protect Feature

Drip-proof

Construction

Permanent Magnet

Efficiency

IE 2

Model Number

500mm Stroke

Color

black

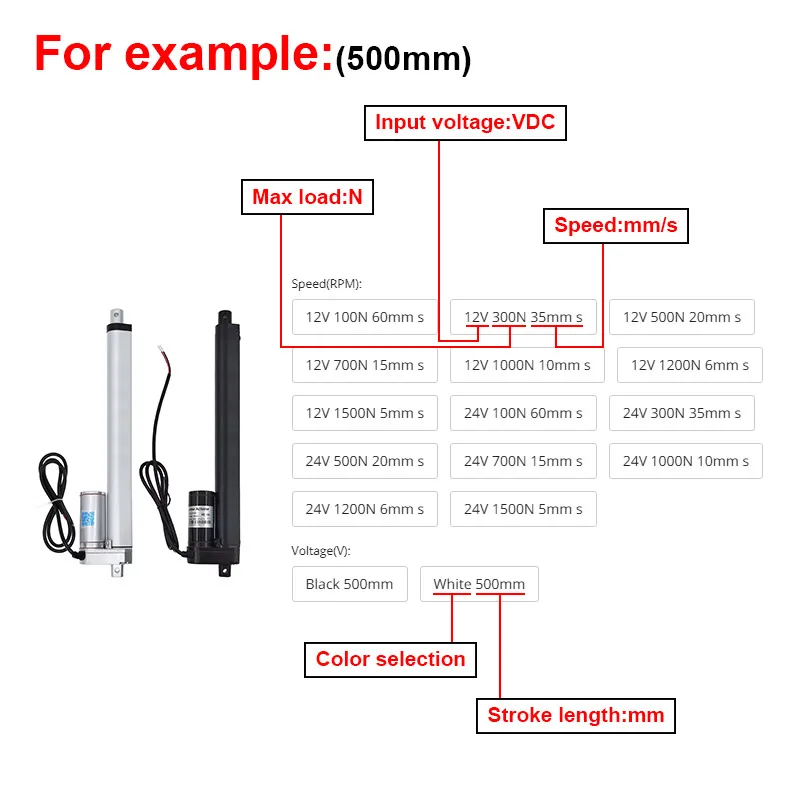

Torque

100/300/500/700/1000/1200/1500N

Speed(RPM)

4/6/10/15/20/35/60/90mm/s

Voltage(V)

DC12V/24V/36V/48V
